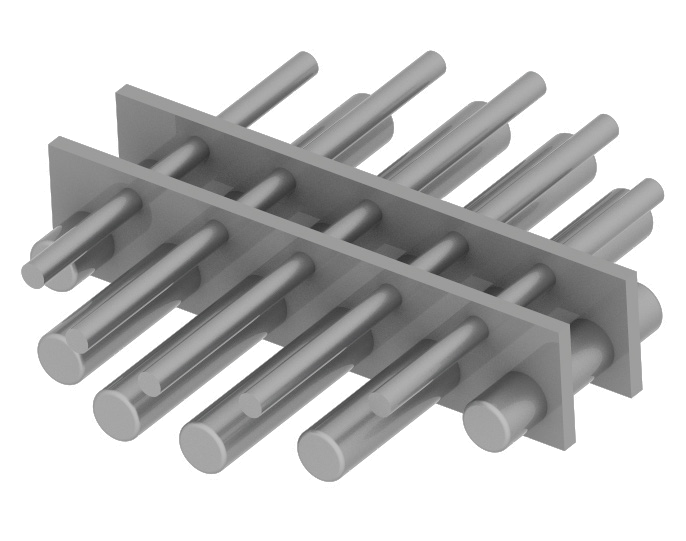

Idemag Magnetic Separation Grids are magnetic filtration systems developed to effectively remove iron and ferromagnetic contaminants from granular or powdered products.
The system consists of powerful magnetic rods arranged in different configurations. The magnetic elements are installed inside round or rectangular housings, preventing metal contamination in the product stream from reaching subsequent production stages.
As granular or powdered product passes through the magnetic grid, ferromagnetic particles are attracted by the powerful magnetic field and retained on the surfaces of the magnetic rods. The cleaned product then continues through the production line.
The number of magnetic rods, spacing between them, magnet type and system geometry can be selected according to the characteristics of the product being processed and the plant's process requirements.
Magnetic separation grids can be custom-designed according to the installation location and the characteristics of the material to be filtered.
- Overall system dimensions
- Magnet type to be used
- Number of magnetic rods
- Spacing between rods
- Use of deflectors
- Connection and mounting design
Before production, a detailed 3D technical drawing of the system can be provided to the customer to verify that the design is suitable for the application.
Magnetic grids for the food industry can be manufactured from 316L stainless steel. This construction provides a suitable solution for production environments requiring hygiene, durability and long service life.
In processes requiring filtration of high-temperature materials, special magnets suitable for the operating temperature can be used to maintain system performance.
- Separation system consisting of powerful magnetic rods
- Suitable for granular and powdered products
- Round or rectangular housing options
- Customer-specific dimensions and configuration
- Adjustable number and spacing of magnetic rods
- Optional deflector systems
- 316L stainless-steel construction for food applications
- Special magnet options for high-temperature applications
- Suitable for high-throughput production systems
- Easily replaceable magnetic elements
- Effective separation of ferromagnetic contaminants
- Improved final product purity and quality
- Protection of production equipment against metal contamination
- Effective filtration at high product flow rates
- Minimal maintenance requirements
- Easy replacement of magnetic elements
- Customizable design for different products and processes
- Easy integration into existing production lines
- Grain and cereal products
- Powdered products
- Granular raw materials
- Food-production lines
- Plastics and polymer industry
- Chemical industry
- Raw-material feeding systems
- High-throughput industrial production lines
