Idemag Magnetic Rods are powerful magnetic elements used to effectively separate iron and ferromagnetic particles from dry or liquid products.
The magnetic rods feature a special magnetic circuit made from powerful magnets and are enclosed in AISI 304 or AISI 316 stainless steel.
Magnetic rods are fundamental components used to build different types of magnetic filters and separation systems.
Depending on the application, they can be used in rectangular, circular or individual-element configurations.
The design and dimensions of the magnetic rods can be determined according to the characteristics of the product to be filtered and the production process.
- Type of product to be filtered
- Material particle size
- Product flow rate
- Physical space available for installation
- Required magnetic performance
- Standard diameter: 25 mm
- Standard diameter: 32 mm
- Typical length range: 100 mm-1800 mm
- Available in different diameters and lengths on request

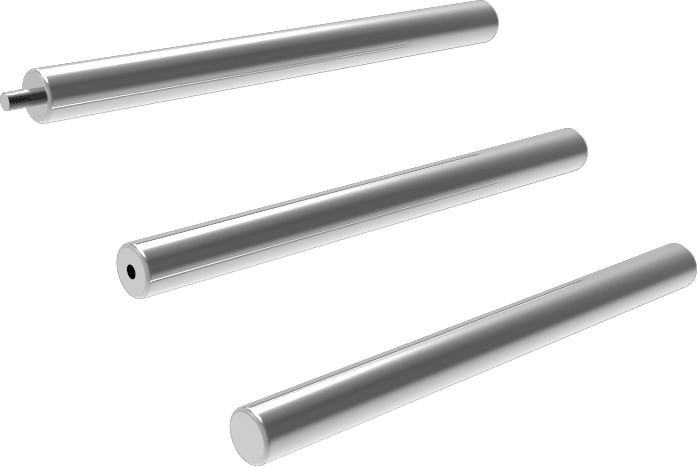

- Male threaded connection
- Female threaded connection
- Plain connection
- Application-specific connection and mounting options
Idemag's precision manufacturing process ensures optimum magnetic performance from the rods. The product is also designed to provide a fully sealed construction.
Gauss values may vary depending on the internal configuration of the magnetic system. The stated Gauss values should be considered minimum reference values.
- Powerful magnetic-circuit design
- AISI 304 or AISI 316 stainless-steel enclosure
- Suitable for use with dry and liquid products
- Integrable into different magnetic filtration systems
- High magnetic-separation performance
- Fully sealed construction
- Different dimensional and connection options
- Project-specific manufacturing capability
- Effective removal of ferromagnetic contaminants
- Improved product purity
- Protection of production equipment against metal contamination
- Easy adaptation to different products and processes
- Compact and modular system design
- High durability and long service life
- Easy integration into new or existing magnetic filter systems
- Magnetic filtration systems
- Food-production lines
- Plastics and polymer industry
- Chemical industry
- Powder and granular product lines
- Liquid-product processing lines
- Raw-material feeding and conveying systems
- Industrial metal-contamination control
