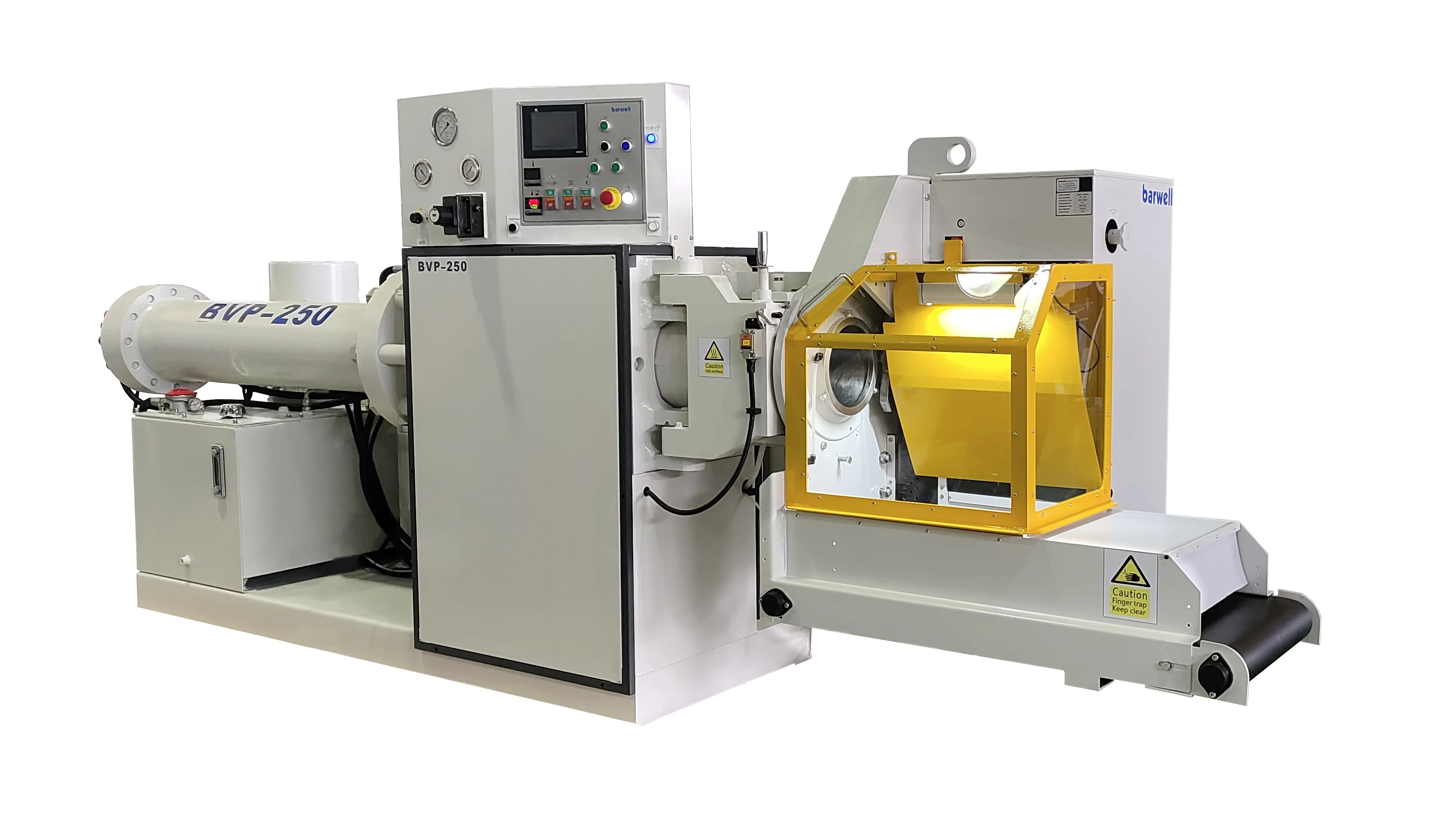

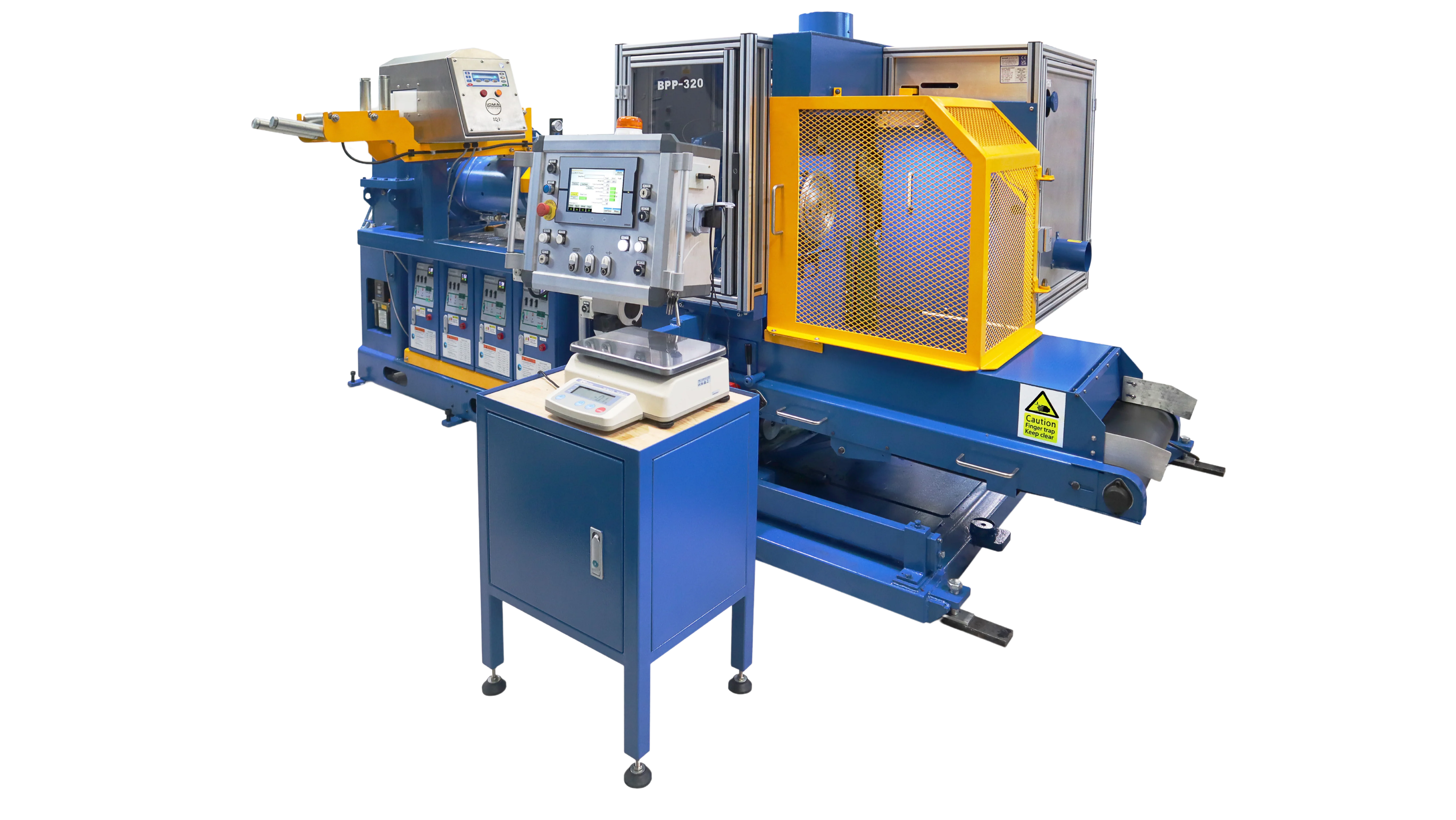

ECO: Ram Preforming ve Ekstrüzyon

₺1,00

The standard range of Barwell ECO high performance, low investment and cost-saving ram extruders and preformers are specifically designed for the accurate and efficient processing of rubber and synthetic polymer compounds across multiple industries.

A versatile and high quality processing system ensuring most types of compound can be processed to produce consistent and accurate product from silicone to FKM
An operator-friendly system that requires minimal user training increasing production capability
An energy-saving method of production significantly reducing power consumption
A cost-cutting solution which reduces factory space usage, material wastage and labour costs, providing a quick return on investment
Produces higher quality and more accurate preforms
Better tolerance to fast accelerators with no heat build-up during extrusion
Complete processing flexibility combining extrusion, cutting and check weighing all in one machine
A robust, safe and reliable system with easy maintenance

Stok kodu ECO: Preformers & Extruders Kategori Kauçuk Pres Makineleri Marka: Barwell

Açıklama

Çalışma Sistemi

The ECO extrudes the prepared compound using a hydraulically powered ram. The rate of the extrusion is monitored by a digital flow valve and this permits the operator to select precisely the rate at which the rubber is extruded. An inverter controlled variable speed cutter (preformers only) is located on the head of the machine and the extrudate is cut at the die face so variations in die swell do not affect the volumetric accuracy of the preforms. Note: A preformer offers all the benefits of an extruder but is also supplied with a high specification cutting module unit. It is a proven technology adopted by hundreds of rubber companies around the world.

Standart ECO Özellikleri
