Alpha PP
Flat Die (Sheet & Cast Film)
General Features

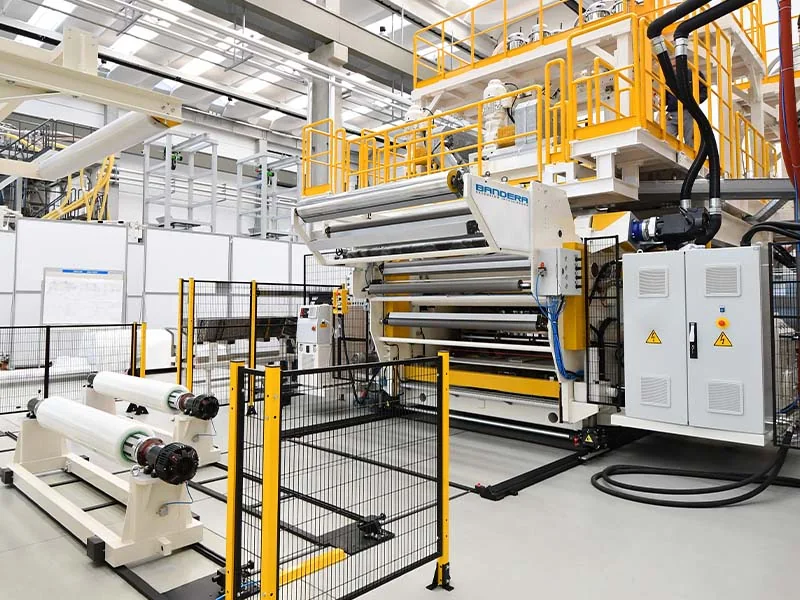

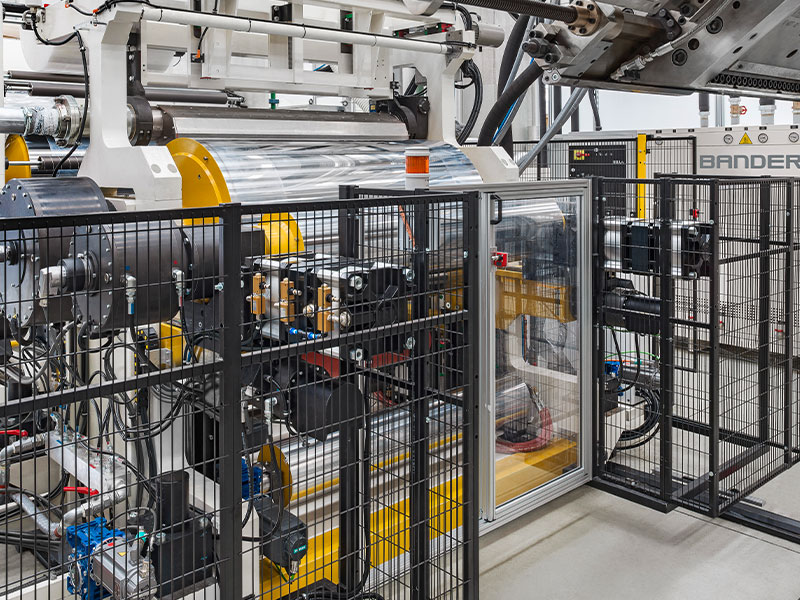

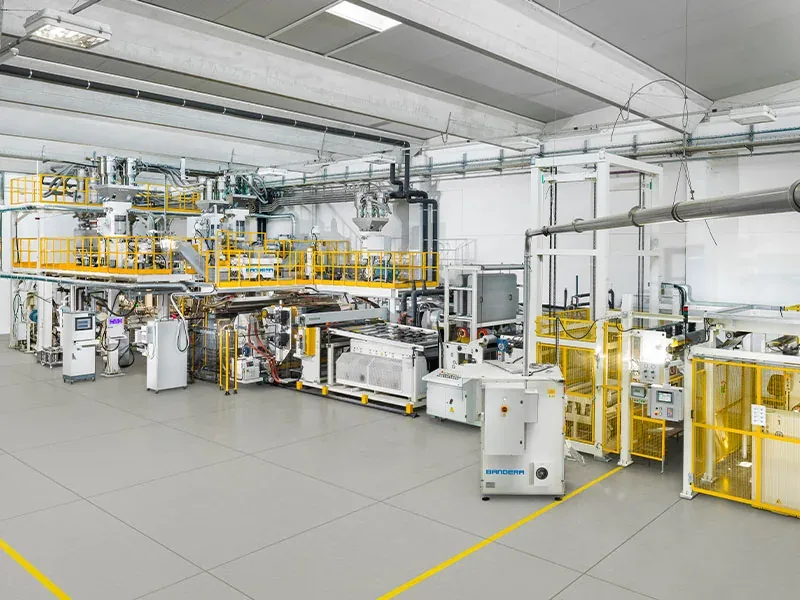

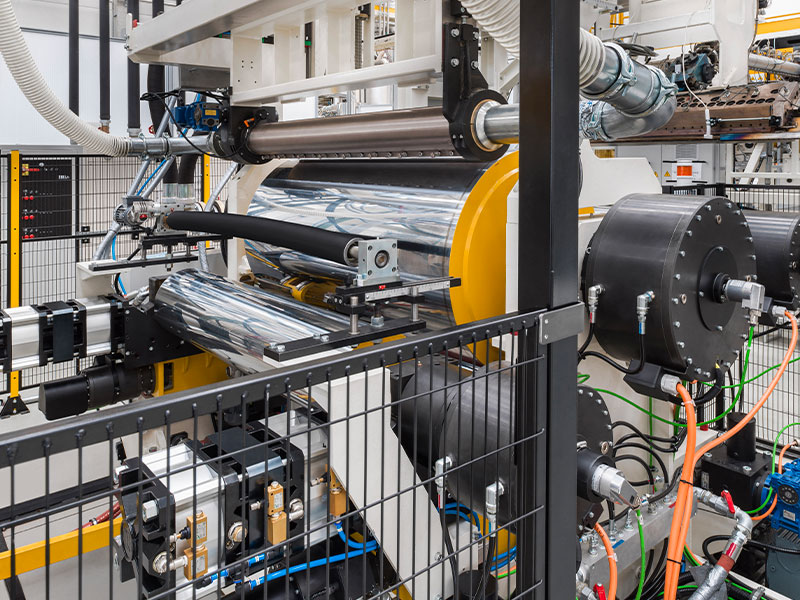

Bandera Alpha PP™ – High-Quality PP Film Extrusion Line
PP Film Production with High Transparency and Precise Layer Structure
Bandera Alpha PP™ is a Flat Die extrusion line developed for the production of high-quality rigid and flexible PP films.
It combines integrated Cast & Calendering technology with optional in-line film lamination and extrusion coating technology designed to optimize the processability of barrier resins.
Alpha PP™ is designed particularly for food and non-food packaging, Form-Fill-Seal (FFS), thermoforming, converting and industrial applications.
Integrated Cast & Calendering Technology
The integrated Cast & Calendering technology at the core of Alpha PP™ has been developed to achieve high product quality and precise process control in PP films.
Depending on production requirements, the line can be configured with an in-line film lamination system. This feature provides production flexibility for different film structures, particularly in FFS applications.
In addition, the extrusion coating equipment helps process barrier resins in a more controlled manner and enables precise formation of the layer structure within the film.
Outstanding Product Features Compared with Standard PP
Bandera Alpha PP™ is designed to improve the following product characteristics compared with standard PP film production:
Higher Transparency
Lower haze and higher clarity enable the production of PP films particularly suited to applications requiring high visual quality.
Precise Layer Structure
Process technology designed for more precise formation of layers in multilayer structures supports the combination of different functional properties within the same film structure.
Easier Processing of Barrier Resins
Alpha PP™ can be configured with extrusion coating technology designed to optimize the processability of barrier resins.
This makes it possible to evaluate different material combinations for PP film applications requiring barrier properties.
Lower Shrinkage
Lower shrinkage tendency provides an important production advantage, particularly in thermoforming applications and applications requiring precise dimensional properties.
Sustainable Thickness Reduction
The production approach aimed at controlled reduction of film thickness also supports down-gauging applications designed to reduce material consumption.
Improved Thermoformability
Alpha PP™ provides process solutions designed to improve the material characteristics required for thermoforming applications.
Higher Mechanical Properties
The process configuration designed to improve the mechanical properties of PP film can be adapted to meet the requirements of different packaging and industrial applications.
High Flexibility with HVTSE®
The Alpha PP™ line can be configured with Bandera's Highly Vented Twin Screw Extruder – HVTSE® technology.
The HVTSE® option provides technology designed to improve process flexibility, material processing capability and product quality.
Bandera also states that HVTSE® technology provides advantages for reprocessing and homogenizing ground/regrind materials.
Production Flexibility and Cost Management
Alpha PP™ focuses not only on product quality but also on the flexibility of the production process.
Specific advantages highlighted by Bandera include:
- Optimized energy consumption
- Easier color changes
- Easier recipe changes
- Overall Extrusion Equipment Effectiveness (OEEE®) approach
- Reprocessing of regrind material
- Improved material homogenization
These features contribute to greater production flexibility.
Material Flexibility Beyond PP
Although Alpha PP™ is primarily designed for the production of high-quality PP products, Bandera's official product description also emphasizes the line's flexibility in processing different polymers.
Depending on the configuration, production solutions can be evaluated for materials such as:
- PP
- PET
- PLA
- PS
These materials can be processed depending on the selected line configuration.
FFS and Thermoforming Applications
Alpha PP™ has been developed particularly for the production of rigid and flexible PP films used in Form-Fill-Seal (FFS) and thermoforming applications.
The production line can be used for the following applications:
Food Packaging
High-quality PP films used in food packaging applications.
Non-Food Packaging
PP film applications for packaging various industrial and consumer products.
FFS Applications
Production of rigid and flexible PP films for use in Form-Fill-Seal processes.
Thermoforming
Production of PP sheet/film with the properties required for thermoformed packaging.
Furniture Films
PP film solutions used in furniture and decorative applications.
Industrial Packaging
Film applications for packaging industrial products.
Converting & Printing
PP film production for printing and converting processes.
Medical and Pharmaceutical Packaging
Film production for medical and pharmaceutical packaging applications.
Multilayer Barrier Solutions
Bandera's PP Flat Die product family can be configured with multilayer barrier structures containing EVOH and PA according to customer requirements.
The Alpha PP™ product information particularly emphasizes technology designed to optimize the processability of barrier resins. Alpha PP™ can therefore be considered a flexible production platform for both barrier and non-barrier PP film applications.
Thin Film Production with Alpha PP™
During production trials carried out by Bandera with the AlphaPP line, ultra-thin rigid PP film down to 175 µm was produced at a width of 1100 mm.
Bandera also states that PP film thicknesses down to 80 µm can be targeted in combination with SoftTouch® technology.
These values are based on specific line configurations and production trials and should not be considered standard capacities or guaranteed minimum thicknesses for every Alpha PP™ line.
Technical Specifications
| Feature | Alpha PP™ |
|---|---|
| Technology | Flat Die / Cast & Calendering |
| Main Material | PP |
| Product | Rigid and flexible PP film |
| Film Structure | Barrier or non-barrier |
| Lamination | In-line film lamination, optional |
| Extrusion Coating | Optional / depending on configuration |
| HVTSE® | Optional |
| FFS | Suitable |
| Thermoforming | Suitable |
| Barrier Resins | EVOH / PA, depending on configuration |
| Regrind Processing | Depending on configuration |
| Other Materials | PET, PLA, PS, depending on configuration |
| Applications | Food, non-food, industrial, medical, furniture, converting & printing |
Line width, capacity, film thickness, layer structure, extruder configuration and other process parameters are determined according to the product to be manufactured and the customer's process requirements.
High-Quality PP Film Production with Bandera Alpha PP™
Bandera Alpha PP™ combines Cast & Calendering technology with advanced PP processing solutions, optional HVTSE® technology, film lamination and solutions for processing barrier resins.
With a process configuration designed to improve high transparency, low shrinkage, precise layer structure, thermoformability and mechanical properties, Alpha PP™ provides a flexible Flat Die solution for high-quality PP film production in packaging and industrial applications.
Bandera Alpha PP™ – High-Quality PP Film Production Technology, Backed by Somplast.
